Torque Multiplier

Description

nput torque is amplified 26 times at the output.
Accuracy is ±5% of the applied torque.
Equipped with an anti-recoil device and

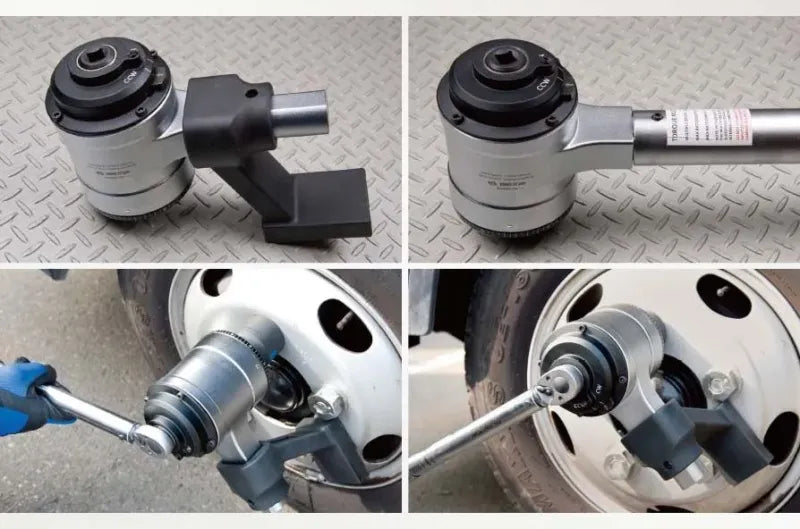

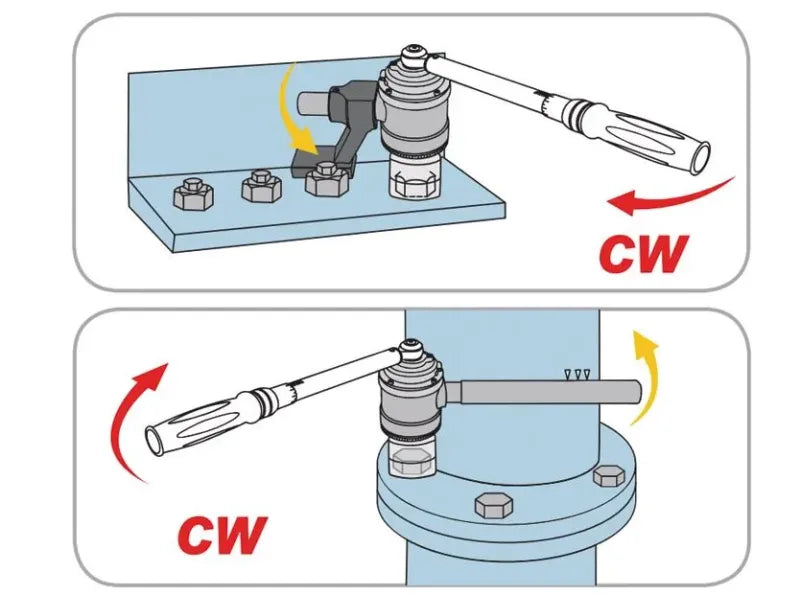

a rotation angle gauge. Two types of reaction arms (straight and bent) are provided for maximum versatility.
Due to its high torque multiplication, there is no need for bulky tools (such as long levers and large torque
wrenches).

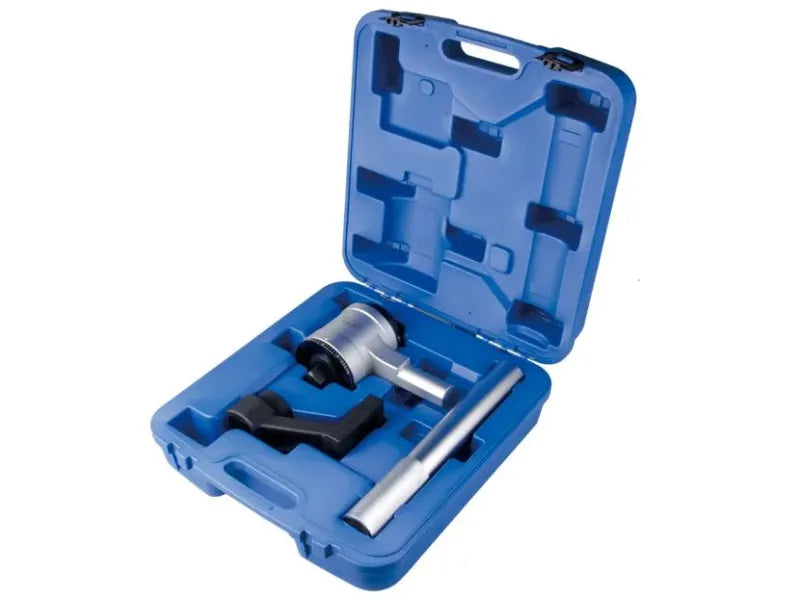

The product is practical and comes in a plastic carrying case for easy use outside the workshop.
Note: For manual operation only. Do not use the torque multiplier with pneumatic tools.
Maintenance-free and long service life.

Gear Ratio: 26:1
Input Square Drive Size: 1/2″
Output Square Drive Size: 1″
Maximum Input Torque (Nm): 175
Maximum Input Torque (ft-lb): 130
Maximum Output Torque (Nm): 4500
Maximum Output Torque (ft-lb): 3300
